Microvias in HDI PCB Design: Challenges, Solutions, and Industry Standards
Introduction
Microvias (≤150µm diameter) are critical in high-density interconnect (HDI) PCBs, enabling miniaturization in 5G, IoT, and aerospace electronics. However, their adoption introduces manufacturing complexities, reliability risks, and stringent design constraints. This guide explores:
- Key challengesin microvia fabrication (thermal stress, plating voids, misregistration).
- Proven solutions(laser drilling, material selection, via filling).
- Industry standards(IPC-6012E, IPC-2226) for quality assurance.
Challenges in Microvia Implementation
Thermal and Mechanical Stress Failures
- Problem: CTE (Coefficient of Thermal Expansion) mismatch between copper and dielectric materials causes cracks during reflow soldering (260°C+).
- Data: 12% failure rate in 0.1mm microvias after 1,000 thermal cycles (Source: IPC-TM-650 2.6.27).
- Visual Aid:

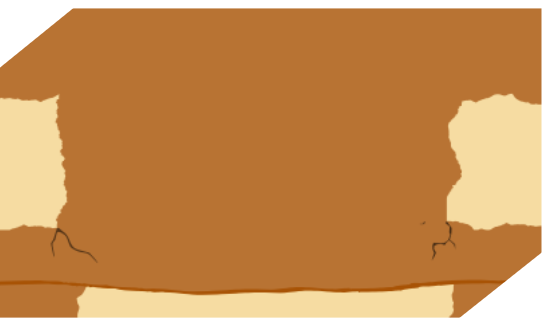

Figure 1: Cross-section showing microvia barrel cracks after thermal cycling.
Plating Voids and Incomplete Filling
- Problem: Electroplating voids (≤5µm gaps) reduce current-carrying capacity by 30%.
- Critical Parameter: Aspect ratio >1:1 (depth:diameter) increases void risk.
Signal Integrity Issues
- Problem: Stub effects in blind vias degrade high-frequency signals (≥10GHz).
- Solution: Back-drilling or stub-less designs.
Solutions for Reliable Microvias
Advanced Laser Drilling Techniques
- CO₂ UV Lasers:
|
Parameter |
CO₂ Laser |
UV Laser (Excimer) |
|
Minimum Diameter |
50µm |
20µm |
|
Precision |
±10µm |
±5µm |
|
Cost |
Lower |
Higher |
Material Selection for High Reliability
- Recommended Dielectrics:
- Megtron 6 (low Dk/Df for RF).
- FR-4 HT (high Tg for thermal stability).
Via Filling and Capping Technologies
- Conductive Epoxy Filling: Prevents voids and enhances thermal dissipation.
- Electroplated Copper Caps: Improve mechanical strength (IPC-4761 Type VII).
Compliance with Industry Standards
IPC-6012E: Qualification for HDI Microvias
- Key Requirements:
- No cracks after 6× reflow cycles.
- Plating thickness ≥15µm for Class 3 boards.
IPC-2226: Design Guidelines
- Microvia Spacing Rules:
- ≥3× dielectric thickness between adjacent vias.
Testing and Validation
- IST (Interconnect Stress Test): 500 cycles at 150°C minimum pass criteria.
Conclusion
Microvias enable next-gen PCB miniaturization but demand rigorous process control. By adopting laser drilling, high-Tg materials, and IPC standards, manufacturers can achieve >99% reliability in HDI applications.
