Design for Manufacturing: HDI Printed Circuit Boards

  • New

HDI printed circuit boards are becoming increasingly popular in a variety of industries. Their small size and high density make them ideal for various electronic devices. However, designing HDI printed circuit boards can be a challenge. This blog post will look at some key considerations for designing HDI printed circuit boards!

HDI Printed Circuit Boards and Its Advantages

HDI printed circuit boards are a type of advanced printed circuit board that offers many advantages over traditional printed circuit boards. HDI printed circuit boards have smaller features and higher densities than traditional PCBs, making them ideal for use in various electronic devices and products.

HDI printed circuit boards offer several advantages over traditional printed circuit boards. One advantage is that HDI printed circuit boards can be made with smaller features and higher densities. This means more circuitry can fit onto a single HDI board, saving space in electronic devices. Additionally, HDI printed circuit boards are less likely to suffer from electrical shorts and other problems with traditional PCBs.

Another advantage of HDI printed circuit boards is that they can be made using various materials. This flexibility allows for using HDI printed circuit boards in many applications, including those requiring high temperatures or special chemicals.

HDI printed circuit boards can also be made to be compatible with a variety of different electronic devices and products. This compatibility can save time and money when HDI boards are used in new or existing products.

HDI printed circuit boards are also more environmentally friendly than traditional ones. HDI boards are made with fewer toxins and chemicals, making them safer for the environment. Additionally, HDI boards can be recycled or reused, reducing their environmental impact.

Overall, HDI printed circuit boards offer several advantages over traditional ones. HDI boards are smaller, denser, more flexible, and more environmentally friendly. These advantages make HDI printed circuit boards an excellent choice for use in various electronic devices and products.

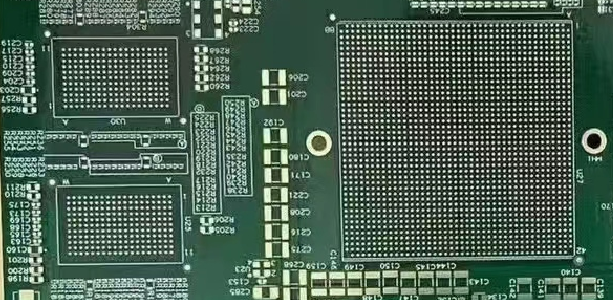

high density board

HDI Printed Circuit Board Manufacturing Process

When designing HDI printed circuit boards, you must consider the manufacturing process. There are various ways to manufacture HDI printed circuit boards, and each has its advantages and disadvantages. The most common manufacturing processes are etching, milling, and laser cutting.

Etching

Etching is a process used to remove material from a substrate to create patterns, designs, or text. In the case of HDI PCBs, etching removes copper from the board to create traces. Etching is typically done using chemicals, though it can also be done using mechanical means.

A few different types of etching can be used to create HDI PCBs. The most common type is wet etching, which uses chemicals to remove material from the substrate. Wet etching is typically done using either acid or alkaline solutions. Acid etching is more commonly used for HDI PCBs as it can be more accurately controlled. Alkaline etching is sometimes used for HDI PCBs, but it is more difficult to control and can damage the substrate if not done properly.

Another type of etching that can be used to create HDI PCBs is dry etching. Dry etching uses plasma etching to remove material from the substrate. Plasma etching is a more aggressive type of etching and can be difficult to control. As such, it is not typically used for HDI PCBs.

Etching is a critical step in the manufacturing of HDI PCBs. It is important to carefully select the type of etching used to ensure that the HDI PCB is manufactured correctly.

Milling

Milling is a precise process, and the milling machine must be carefully calibrated to ensure that the correct amount of material is removed from the board. The milling process can be very time-consuming, and it is important to ensure that the machine is set up correctly before starting.

Once the machine is set up, the operator will load the PCB onto the milling table and secure it. The operator will select the appropriate tool for the job and begin milling. The operator will need to constantly monitor the progress of the milling process and make adjustments as necessary to ensure that the correct amount of material is removed from the board.

After the milling process is complete, the operator will remove the PCB from the machine and inspect it for any defects. If any defects are found, the operator must fix them before the PCB can be sent for final assembly.

Milling is a great option for creating HDI PCBs. It is a precise process that produces high-quality results. However, it is important to note that milling can be a very time-consuming process. If you need your HDI PCBs quickly, you may want to consider another manufacturing option.

Laser Cutting

The manufacture of high-density interconnect (HDI) printed circuit boards (PCBs) is a complex process that involves several important steps. Laser cutting is one of the most critical steps in the HDI PCB manufacturing process. Laser cutting creates microvias, which are small holes connecting different PCB layers. This step is crucial in the HDI PCB manufacturing process because it allows for a high degree of interconnectivity between different layers of the PCB.

Laser cutting is also used to create blind vias, which are small holes that connect the top layer of the PCB to the inner layers. Blind vias are important because they allow for a high degree of connectivity between the different layers of the PCB.

The laser cutting process is complex and requires a high degree of precision. Many factors can affect the quality of the laser-cut, including the type of laser used, the power of the laser, the focus of the laser, and the speed of the laser. Laser cutting is a critical step in the HDI PCB manufacturing process, and choosing a reputable and experienced laser cutting service provider is important.

Final Thoughts

HDI PCBs are the wave of the future for electronics manufacturing. To be at the forefront of technology, you need to use HDI PCBs in your products. They provide many benefits that standard PCBs cannot offer, and they will only become more popular in the years to come.
