Design Strategies to Improve Flex PCB Bend Radius

  • New

Flexible printed circuit boards (FPCBs) or Flex PCBs are widely used in various applications that require miniaturization, lighter weight, and higher packing density. Their use has grown steadily, offering many advantages over traditional rigid printed circuit boards. However, bend radius is one of the main challenges when working with FPCBs.

When an FPCB is flexed, the copper traces on the board can crack or break if the bend radius is too small. This can cause signal integrity issues and lead to failures in the overall circuit. Therefore, it is important to design your FPCB carefully considering bend radius.

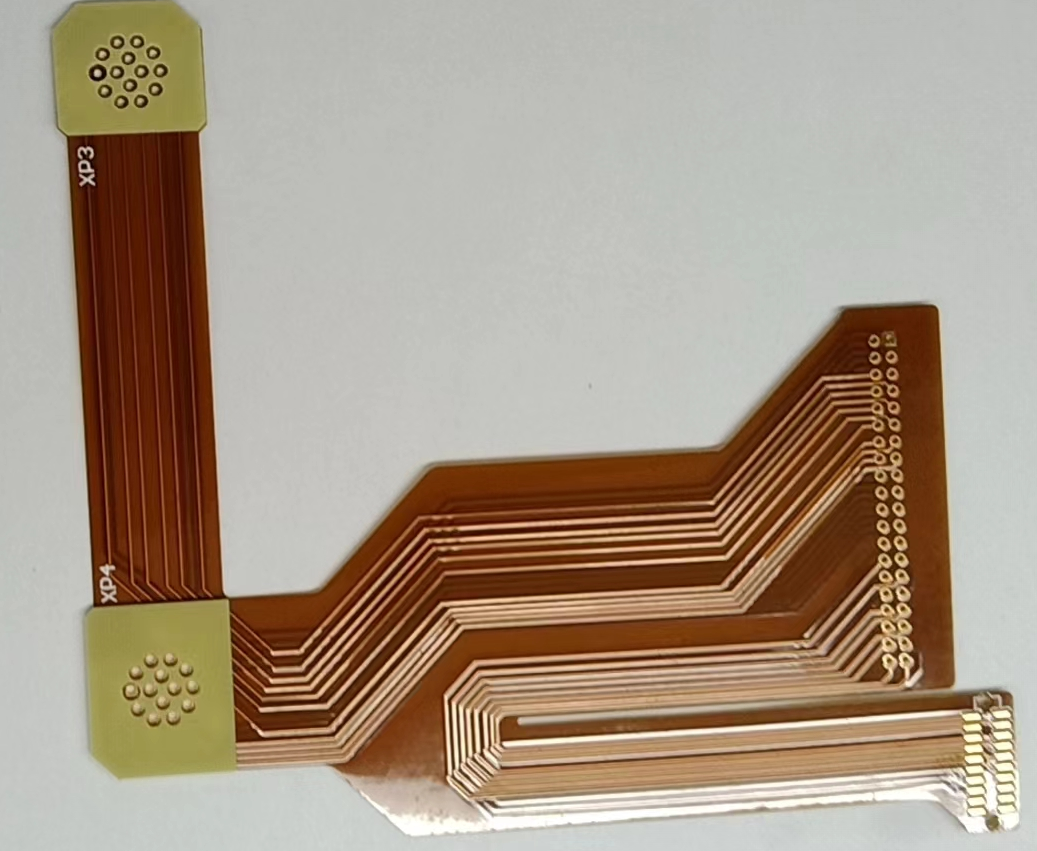

flexible pcb

Flex PCB Bend Radius

Bend radius is the minimum radius your flex circuit can bend before it causes damage to the copper traces or other components on the board. If you try to bend your flex circuit beyond its limit, you will damage the circuitry and potentially cause a short circuit.

This can lead to problems, including data loss, system downtime, and even hardware failure. The minimum bend radius will be determined by the thickness of your copper clad, the amount of copper in the trace, and the kind of dielectric material you use for your substrate.

How to Determine the Bend Radius of Flex PCB?

There are a few different ways to determine the bend radius of a flex PCB. The most common method is to use a template or ruler to measure the distance from the center of the bend to the outermost edge of the PCB. This measurement will give you the minimum radius that which the PCB can be bent without damaging the circuitry.

Another way to determine the bend radius is to use a flexible tape measure. Place the tape measure at the center of the bend and wrap it around the PCB. The distance from the center of the bend to the outermost edge of the PCB will give you the minimum radius that which the PCB can be bent without damaging the circuitry.

Once you have determined the minimum radius that the PCB can be bent, you will need to consider how much force will be required to bend the PCB. The force required to bend a PCB depends on the thickness and the material used. For example, a thin PCB made from a flexible material will require less force to bend than a thick PCB made from a stiffer material.

Factors Affecting Bend Radius

Some factors affect the bend radius of a flex PCB. The thickness of the copper-clad laminate (CCL) and the type of adhesive used are two of the most important factors. The CCL is the substrate on which the copper traces are printed. It is typically made from polyimide or PEEK. The adhesive to attach the CCL to the substrate will also affect the bend radius.

Another factor that affects the bend radius is the thickness of the copper traces. Thicker traces have a larger bend radius than thinner traces. This is because thicker traces are less likely to break when bent.

The final factor that affects the bend radius is the stiffness of the PCB. Stiffer PCBs have a larger bend radius than less stiff PCBs. This is because stiffer PCBs are less likely to deform when bent.

Ways to improve Bend Radius of Flex PCB

There are a few different ways to improve the bend radius of an FPCB:

Use Stiffener Bars

One way to improve the Bend Radius of a flex PCB is to use metal stiffener bars. Metal stiffener bars are used to support and reinforce the flexible circuit. They are typically made of aluminum or stainless steel. The stiffener bars are attached to the flex PCB using adhesive or soldering.

Using metal stiffener bars can significantly improve the Bend Radius of a flex PCB. The use of metal stiffener bars allows for thinner and lighter flex circuits. It also provides greater support for the bends in the circuit. The result is a more reliable and durable flex circuit.

If you are considering using metal stiffener bars to improve the Bend Radius of your flex PCB, there are a few things to keep in mind:

  • You need to ensure that the adhesive or soldering used to attach the stiffener bars is compatible with the material of the flex circuit
  • You must ensure that the stiffener bars are properly aligned with the bends in the flex circuit
  • It would help if you made sure that the stiffener bars were not too close to each other. If they are too close, they can cause the flex circuit to crack or break

Use Thicker Copper Traces

Thicker copper traces can provide many benefits regarding the bend radius of a flex PCB. First, thicker copper traces can help reduce the circuit board's overall thickness. This is important because it helps reduce the amount of space required for the circuitry, making the PCB more compact and easier to work with.

In addition, thicker copper traces can also help improve the PCB's flexibility. This is important because it can allow the PCB to be bent or flexed in various ways, making it easier to work with in tight spaces. Finally, thicker copper traces can also help improve the PCB's strength. This is important because it can help prevent the circuit board from breaking or damaging during use.

Several factors need to be considered when choosing the thickness of the copper traces used in a flex PCB:

  • First, the circuit board's overall size and weight need to be considered to make it easier to work with
  • In addition, the frequency of use of the PCB also needs to be considered because it is difficult to deal with high frequencies
  • Finally, the environment in which the PCB will be used because thicker copper traces are more resistant and difficult to work with in extreme environments

Place Vias Carefully

The Bend Radius is directly related to how the vias are placed on the flex circuit. If the vias are not placed properly, they can act as stress points and cause the flex circuit to break when bent. Therefore, it is important to carefully consider the placement of vias when designing a flex circuit.

In general, vias should be placed away from areas where the flex circuit will be bent. Vias can also be staggered so that they are not all in a straight line. This helps distribute the stress over a larger area and reduces the likelihood of the flex circuit breaking.

In addition, it is important to use the correct size and type of via for the application. Using too small of a via can cause electrical problems, and using too large of a via can add unnecessary weight to the flex circuit.

Final Thoughts

So, that's all about the bend radius, O=on which factors depend, and how it can be improved in Flex PCB. By using one or more of these design strategies, you can improve the bend radius of your FPCB and make it more resistant to damage. This will help ensure that your circuit functions properly and lasts for a long time.
