How Flexible Is Flex PCB?

  • New

Flexible printed circuit boards (FPCBs)are becoming more and more popular due to their flexibility and the many benefits they offer. If you're unfamiliar with them, now is the time to learn about this growing technology. Flex PCBs are used in several industries and applications. Their flexibility allows them to be used in various products, from wearable electronics to medical devices. But how flexible is Flex PCB?

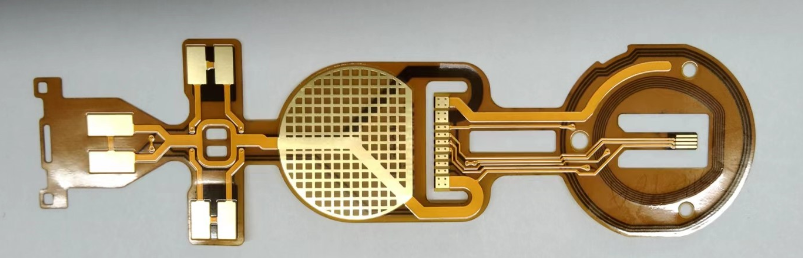

flex circuit design

Flexibility of Flex PCB

Regarding flexibility, there are three main factors to consider: flexibility in the x-axis, y-axis, and z-axis.

Flexibility in X-Axis

Flexibility in the x-axis refers to the ability of the circuit board to be bent in the horizontal plane. This is the most common type of flexibility and is often used in applications where the PCB must be wrapped around a curved surface.

Flexibility in Y-Axis

Flexibility in the y-axis allows circuit boards to be shaped in the vertical plane. The applications can be seen where the PCB needs to be inserted into a narrow space, such as between two layers of a device.

Flexibility in Z-Axis

Flexibility in the z-axis bent or shaped circuit boards in the depth direction. This is the least common type of flexibility and is typically only seen in very specialized applications.

Material Used for Flex PCB

The flexibility of flex PCBs is limited by the materials used to make them. The most common substrates used for flex PCBs are polyimide and polyester. These materials have a flexibility that allows them to be bent and folded multiple times without breaking. However, they are not as flexible as other materials, such as rubber or silicone.

Polyimide

Polyimide is the most common substrate used for flex PCBs. Its balance of flexibility and durability makes it ideal for repeated bending or folding applications. Polyimide is also resistant to chemicals and temperature extremes, making it a good choice for applications that may be exposed to harsh environments.

Polyester

Polyester is another common substrate used for flex PCBs. It is not as flexible as polyimide, but it is more durable. Polyester is also resistant to chemicals and temperature extremes, making it a good choice for applications that may be exposed to harsh environments.

Layers of Flex PCB

The number of layers is an essential factor in determining a flex PCB's flexibility. The more layers there are, the less flexible the board will be. This is because each layer adds thickness and rigidity to the board. The more layers there are, the more expensive the board will be.

There are a few applications where flexibility is not as important as other factors such as cost or space. In these cases, using a multilayer flex PCB may be more advantageous than a single-layer board.

Multilayer flex PCBs offer many advantages over single-layer boards. They are more rigid, making them less likely to warp or bend during use. They also have better heat dissipation properties and can be used in various applications.

The number of layers in a flex PCB will also affect the manufacturing process. Multilayer boards require specialized equipment and techniques that are not always available. This can lead to longer lead times and higher costs.

When choosing the number of layers for a flex PCB, it is essential to consider the application and the desired properties of the board. In most cases, more layers will result in a more expensive and less flexible board. However, there are some applications where the extra layers are necessary to achieve the desired results.

Overall, the flexibility of flex PCBs is also limited by the number of layers used. The more layers a flex PCB has, the less flexible it will be. For example, a four-layer flex PCB will be less flexible than a two-layer flex PCB.

Thickness of Flex PCB

The thickness of a flex PCB can have a significant impact on its flexibility. Generally speaking, the thinner the PCB, the more flexible it will be. This is because there is less material for the board to bend or twist around.

However, some trade-offs need to be considered when choosing the thickness of a flex PCB. For example, thinner boards are more susceptible to damage and are more challenging to work with.

In most cases, the thickness of a flex PCB will be chosen based on the application's specific requirements. However, it is crucial to keep in mind that the thickness of a flex PCB can have a major impact on its flexibility.

However, conclusively the thickness of the flex PCB also affects its flexibility. The thinner the flex PCB, the more flexible it will be. However, bending or folding makes thin flex PCBs more likely to be damaged.

Flex PCB Can be Used in Hand-Held Gadget

Nowadays, electronic gadgets are getting smaller and more portable. This is where flex PCBs come in handy. Flexible printed circuit boards are ideal for devices that need to be compact and lightweight. Here are some of the advantages of using flex PCBs in hand-held gadgets:

  • They are lightweight and compact
  • They can be bent or twisted to fit into tight spaces
  • They have a lower risk of breaking during assembly or use
  • They offer better electrical performance than traditional PCBs
  • They can be used in many applications, such as medical devices, wearables, and more

If you are looking for a reliable and cost-effective way to create compact electronic devices, consider using flex PCBs. They offer many benefits over traditional PCBs and can be used in several applications.

Final Thoughts

In general, flex PCBs are much more flexible than rigid PCBs. However, their flexibility is limited by the materials used to make them and the number of layers. It is an excellent choice for products that need to be thin and lightweight. It offers design flexibility and can be used in various applications. If you're looking for a durable, flexible circuit board, flex PCB is the right choice.
